하비윙 변속기 프로그램카드 입니다.
XRUN시리즈와 EZRUN시리즈 제품에 사용가능합니다.
The programmable items of LED_PC2C (Available for XERUN and EZRUN series car ESC of Version2)
1.1 Size: 88mm (L) * 58mm (W) * 14mm (H)
1.2 Weight: 40g.
1.3 Input Voltage: 4.8-6V (If the ESC hasn't a built-in BEC, you must use an additional battery pack to supply the program card)
#1 Running Mode
#2 Drag Brake Force
#3 Low Voltage Cut-Off Threshold
#4 Start Mode
#5 Maximum Brake Force
#6 Maximum Reverse Force
#7 Initial Brake Force
#8 Throttle Neutral Range
#9 Timing
#10 Over-Heat Protection
#11 Motor Rotation
#12 Lipo Cells
(Note: The item #11 and #12 are not available for XERUN series ESC of Version 2, they only available for EZRUN series ESC)

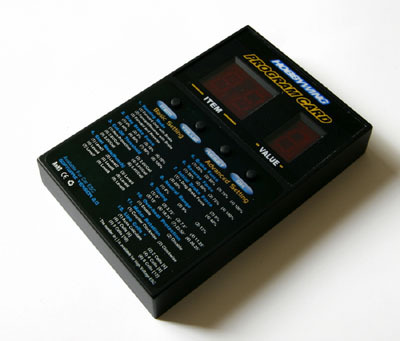

Front Panel Picture of LED_PC2C:
Include:1pcs Platinum LED Program Card / Program Box for CAR or Truck ESC
LED Program Card (Version 2.0)
