전원 OFF: 배터리잭을 분리하여 전원 OFF !!!

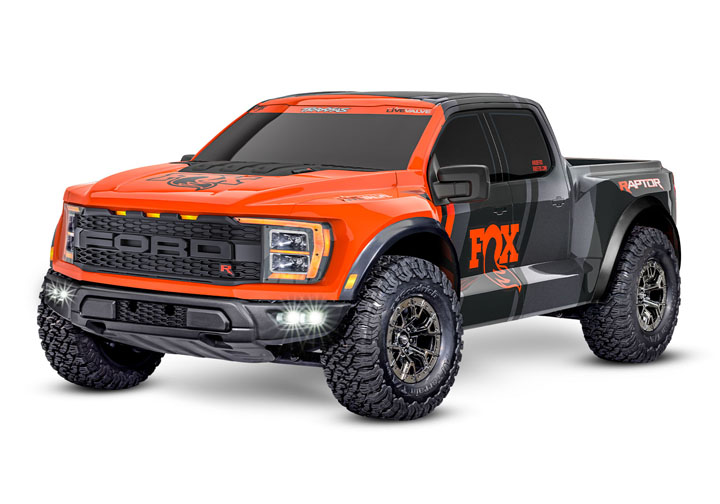

| Model Name: | Ford Raptor R 4X4 Ultimate |
|---|---|
| Model Type: | Short Course Truck |
| Model Speed: | 60+ mph with 4s LiPo (sold separately) |
| Model Skill Level: | 2 |
| Scale: | 1/10 |
| Weight: | 6.62 pounds (3.00 kg) |
| Length: | 24.98 inches (637 mm) |
| Width: | 11.63 inches (289 mm) |
| Front Track: | 11.63 inches (289 mm) |
| Height: | 8.91 inches (226 mm) |
| Rear Track: | 11.63 inches (289 mm) |
| Wheelbase: | 15.11 inches (384 mm) |
|---|---|
| Center Ground Clearance: | 2.05 inches (52 mm) |
| Drive System: | Shaft-driven 4WD w/ Torque-Biasing Center Drive |
| Differentials: | Hardened steel bevel, sealed, limited slip |
| Gear Pitch: | 32 pitch |
| Servo: | 2275 high-torque waterproof |
| Radio System: | TQi™ 2.4 GHz 2-channel radio with wireless module |
| Battery Compartment Specs: | 165 mm X 50 mm X 23/26 mm |
- Motor Spec
| Motor Type: | 540XL 2400 Kv sensorless brushless |
|---|---|
| Weight: | 11.18 ounces (317 g) |
| Length: | 3.58 inches (91 mm) |
| Diameter: | 1.41 inches (36 mm) |
| Shaft Size: | 5 mm |
| Connector Type: | Traxxas 6.5 mm bullet connectors |
- ESC Spec
| Input Voltage (cells): | 2s-4s LiPo (7.4 V - 16.8 V) |
|---|---|
| Case Size: | 2.40″ (61 mm) x 2.09″ (53 mm) x 1.42″ (36 mm) |
| Weight: | 4.20 ounces (119 g) |
| BEC Voltage: | Selectable 6.0 or 7.4 volts |
| Motor Connectors: | Traxxas 6.5 mm bullet connectors |
| Battery Connectors: | Traxxas High-Current Connectors |
| Thermal Protection: | Two-stage thermal shutdown |
| Ports: | RX input, auxiliary fan connector What’s In The Box:
|
