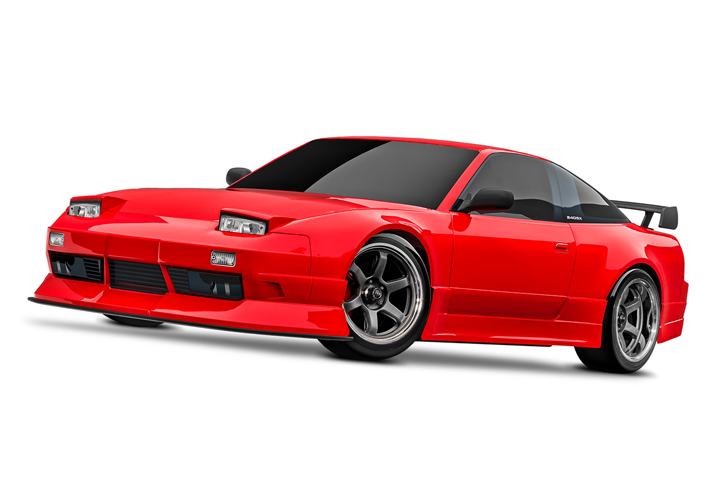

| Name: | 4-Tec Drift Nissan 240SX |
|---|---|
| Type: | On-Road Cars |
| Skill Level: | 1 |
| Scale: | 1/10 |
| Weight: | 2.28 pounds (1.30 kg) |

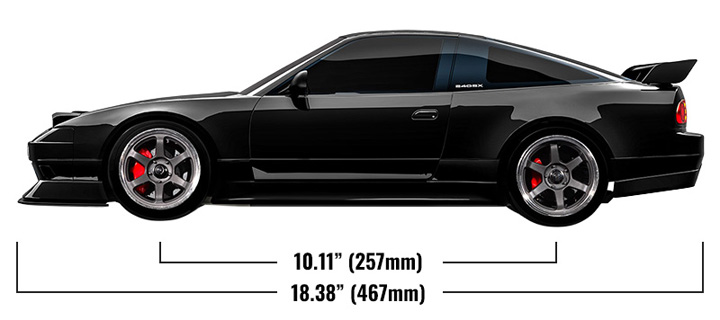

| Length: | 18.38 inches (467 mm) |

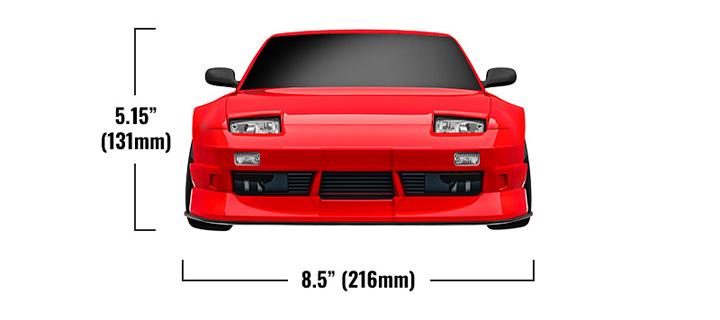

| Width: | 8.50 inches (216 mm) |
| Front Track: | 7.87 inches (200 mm) |
| Rear Track: | 7.87 inches (200 mm) |
| Height: | 5.15 inches (131 mm) |
|---|---|
| Wheelbase: | 10.11 inches (257 mm) |
| Center Ground Clearance: | 0.5 inches (12 mm) |
| Driveline: | Rear-wheel drive |
| Differential Type: | Spool |
| Gear Pitch: | 48 pitch |
| Steering Servo: | 2075 digital high-torque waterproof |
| Radio System: | TQi™ 2.4 GHz 3-channel transmitter |
| Battery Compartment Specs: | 174 mm X 48 mm X 23 mm or 26 mm |
MOTOR SPECS
| Name: | Titan Drift 21T 550 |
|---|---|
| Type: | High-torque brushed motor |
| Weight: | 8.47 ounces (240 g) |
| Length: | 3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length |
| Diameter: | 1.53 inches (39 mm) |
| Shaft Size: | 3 mm |
| Connector Type: | Bullet |
ESC SPECS
| Name: | Waterproof XL-5 ESC with low-voltage detection |
|---|---|
| Type: | Brushed |
| Case Size: | 1.23 inches (31 mm) / 2.18 inches (55 mm) / 0.61 inches (15 mm) |
| Weight: | 2.44 ounces (69 g) |
| Motor Connectors: | Bullet |
| Battery Connectors: | Traxxas High Current Connector |
| Power Wire: | 14 gauge |
What’s In The Box:
- 4-Tec Drift with XL-5 ESC and Titan Drift motor
- TQi™ 2.4 GHz radio with Wireless Module
- Front and rear soft-compound tires
- Optional High-Angle Steering Kit
- High quality maintenance tools
What You’ll Need:
- Batteries
4-Tec Drift requires a single NiMH or 2-cell LiPo battery.
- Charger
Traxxas EZ-Peak Live charger (2971) is recommended for easy and fast charging performance.
- AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
