| Name: | Slash 2WD XL-5 HD Kit |
|---|---|
| Type: | Short Course Truck |
| Speed: | 30+ mph with 7-cell NiMH battery |
| Skill Level: | 1 |
| Scale: | 1/10 |
| Weight: | 4.81 pounds (2.18 kg) |

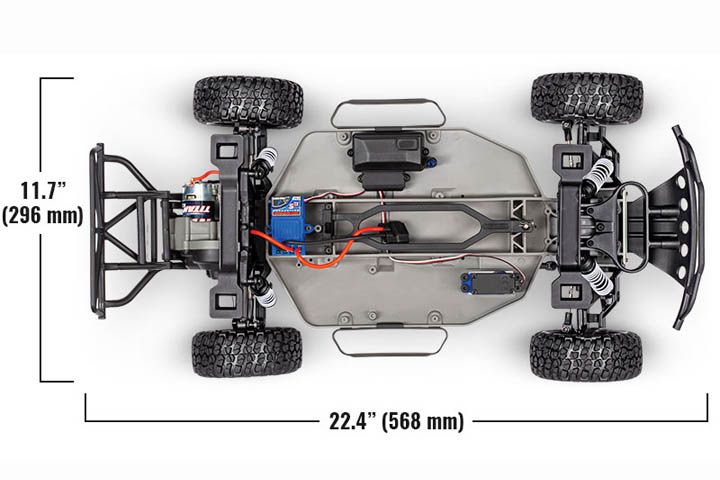

| Length: | 22.8 inches (578 mm) |
| Width: | 11.65 inches (296 mm) |
| Front Track: | 11.65 inches (296 mm) |
| Rear Track: | 11.65 inches (296 mm) |
| Height: | 7.60 inches (193 mm) |

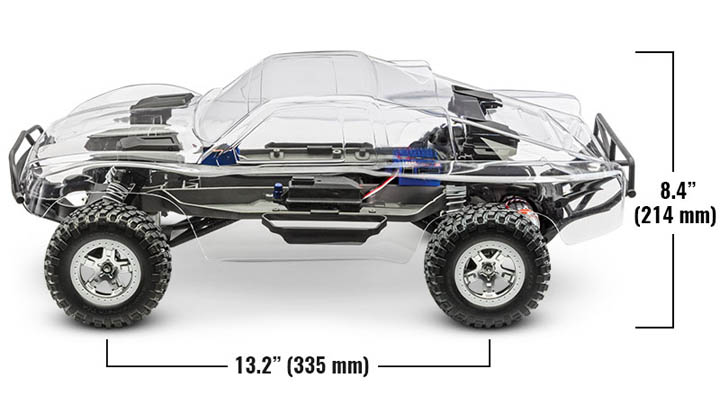

| Wheelbase: | 13.2 inches (335 mm) |
|---|---|
| Center Ground Clearance: | 3.5 inches (89 mm) |
| Driveline: | 2WD |
| Transmission: | Magnum 272¢â |
| Differential Type: | Planetary steel gear |
| Gear Ratio (Internal): | 2.72 (final drive: 9.05) |
| Gear Pitch: | 48 pitch |
| Steering Servo: | 2075 digital high-torque waterproof |
| Radio System: | 2.4 GHz 2-channel radio |
| Battery Compartment Specs: | 165 mm X 49.5 mm X 23 mm, 25 mm |
MOTOR SPECS
| Name: | Titan¢ç 12T 550 |
|---|---|
| Type: | High-speed brushed motor |
| Weight: | 8.47 ounces (240 g) |
| Length: | 3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length |
| Diameter: | 1.41 inches (36 mm) |
| Shaft Size: | 3 mm |
| Connector Type: | Bullet |
ESC SPECS
| Name: | Waterproof XL-5 ESC with low-voltage detection |
|---|---|
| Type: | Brushed |
| Case Size: | 1.23 inches (31 mm) / 2.18 inches (55 mm) / 1.04 inches (26 mm) |
| Weight: | 2.44 ounces (69 g) |
| Motor Connectors: | Bullet |
| Battery Connectors: | Traxxas High-Current Connector |
| Power Wire: | 14 gauge |
What You¡¯ll Need:
- Batteries
Slash requires a single NiMH or LiPo battery. See full list of batteries.
- Charger
Traxxas EZ-Peak¢ç charger (2970) is recommended for easy and fast charging performance.
- AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.

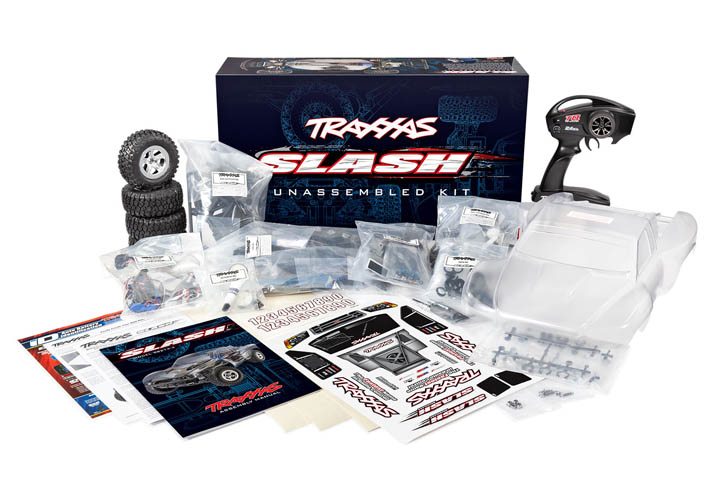

What¡¯s In The Box:
- Slash 2WD short course truck assembly kit
- XL-5 ESC and Titan¢ç 550 Motor
- Clipless clear body with window masking, decals, and custom masking decals
- Full-color step-by-step assembly manual
- TQ¢â 2.4 GHz radio system
- High quality maintenance tools
