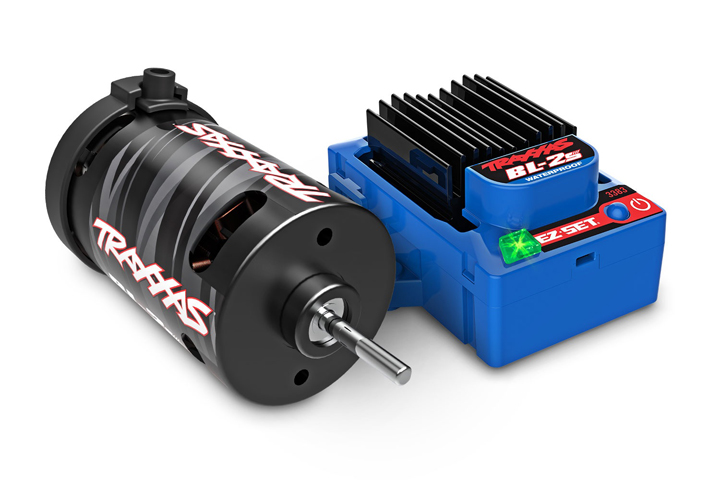

MOTOR SPECS

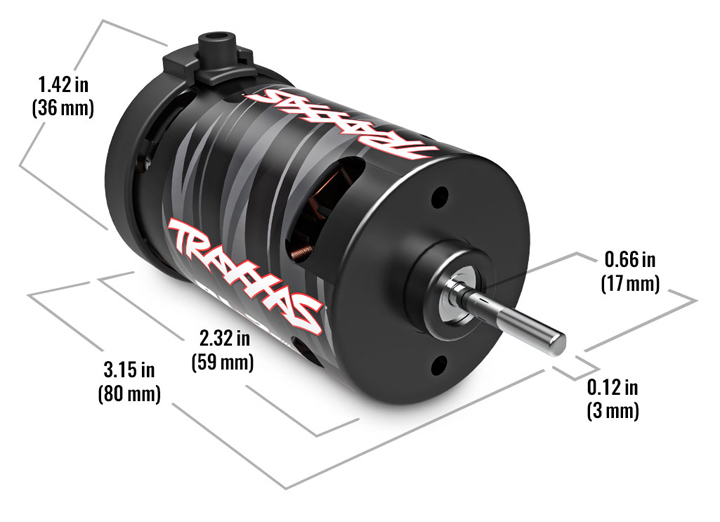

| Motor Type: | BL-2s 3300 Kv sensorless brushless motor |
|---|---|
| Weight: | 7.51 ounces (213 g) |
| Length: | 3.15 inches (80 mm) |
| Diameter: | 1.42 inches (36 mm) |
| Shaft Size: | 3 mm |
| Connector Type: | Traxxas Quick Connect Motor Plug |
ESC SPECS
| Input Voltage (cells): | 6-7 Cells NiMH / 2s LiPo |
|---|---|

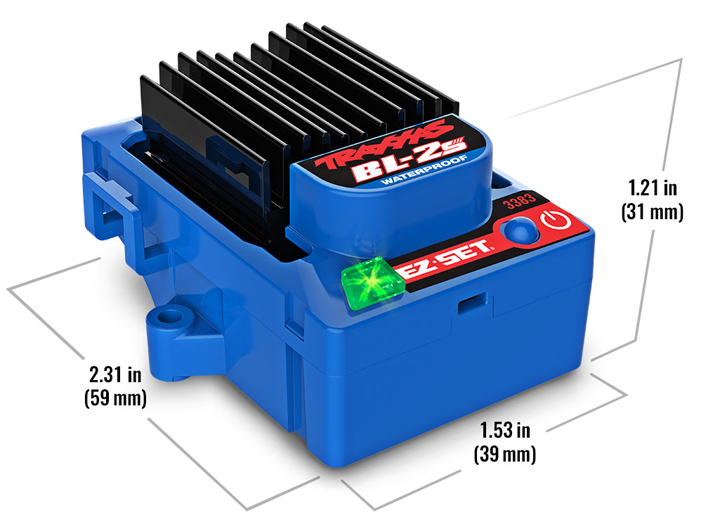

| Case Size: | 1.53″ (39 mm) x 2.31″ (59 mm) x 1.21″ (31 mm) |
| Weight: | 3.07 ounces (87 g) |
| BEC Voltage: | 6.0 volts |
| Reverse Delay: | Yes, with lockout |
| Thermal Protection: | Two-stage thermal shutdown |
| Ports: | Auxiliary fan |
- BL-2s ESC Features
- Fully waterproof
- Two-stage low voltage detection LiPo batteries
- Patented Training Mode™ reduces the power output by 50% for new or younger drivers
- EZ-Set® one-button setup
- Three programmable drive profiles
- Sport Mode – Fwd / Brake / Rev
- Race Mode – Fwd / Brake
- Training Mode– 50% Fwd / Brake / 50% Rev
- Multi-color status LED
- Two-stage thermal shutdown protection
- Large aluminum heatsink dissipates heat
- Built-in auxiliary fan output
- Keyed motor connector
- BL-2s Brushless Motor Features
- Integrated cooling fan
- Low-maintenance design
- High-speed ball bearings
- 3300 Kv
- 적용 차종
4-Tec 2.0 BL-2s Chassis
83124-4
BIGFOOT 4X4 BL-2s
67134-4
BIGFOOT No. 1 BL-2s
36334-4
Ford Fiesta ST Rally BL-2s
74154-4
Jato 4X4 BL-2s
90154-4
Mini Maxx (107154-1) Front Three-Quarter View (Green)
Mini Maxx BL-2s
107154-1
Mini Slash 4X4
108164-1
Rustler 2WD BL-2s
37354-4
Rustler 4X4 BL-2s
67164-4
Slash 2WD BL-2s
58334-4
Slash 4X4 BL-2s
68154-4
Slash Late Model BL-2s
104364-74
Slash Modified BL-2s
104354-74
Stampede 2WD BL-2s
36354-4
Stampede 4X4 BL-2s
67154-4
