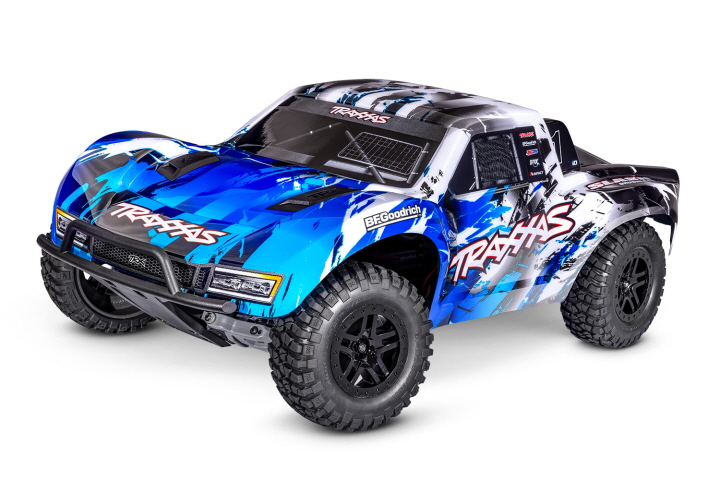

Name: Slash 2WD Brushless

Type: Short Course Truck

Speed: 35+ mph with 2-cell LiPo, 50+ with 3-cell LiPo

Skill Level: 1

Scale: 1/10

Weight: 5.82 pounds (2.41 kg)

Length: 22.4 inches (568 mm)

Width: 11.65 inches (296 mm)

Track: 11.65 inches (296 mm)

Height: 7.6 inches (193 mm)


Wheelbase: 13.2 inches (335 mm)

Center Ground Clearance: 2.2 inches (56 mm)

Driveline: 2WD

Transmission: Magnum 272™

Differential Type: Planetary steel gear

Gear Ratio (Internal): 2.72 (final drive: 9.05)

Gear Pitch: 32 pitch

Steering Servo: 2057 metal gear waterproof

Radio System: TQi™ Sport 2.4 GHz 2-channel radio with TSM®

Battery Compartment Specs: 166 mm X 49 mm X 28 mm


MOTOR SPECS

Name: Velineon V3200 (patent pending)
Motor Type: Sensorless brushless
Weight: 7.48 ounces (212 g)
Length: 3.15 inches (80 mm)
Diameter: 1.53 inches (39 mm)
Shaft Size: 5 mm
Connector Type: 3.5 mm Bullet

ESC SPECS
Name: VX3 Electronic Speed Control
ESC Type: Brushless
Voltage Range: 2-cell or 3-cell LiPo (NiMH not supported)
Case Size: 2.40″ (61 mm) x 2.09″ (53 mm) x 1.69″ (43 mm)
Weight: 4.20 ounces (119 g)
BEC Voltage: 6.0 volts
Motor Connectors: 3.5 mm Bullet
Battery Connectors: Traxxas High-Current Connector

What’s In The Box:

Slash 2WD short course truck with VX3 ESC and V3200 motor

TQi Sport 2.4 GHz radio system

High quality maintenance tools
