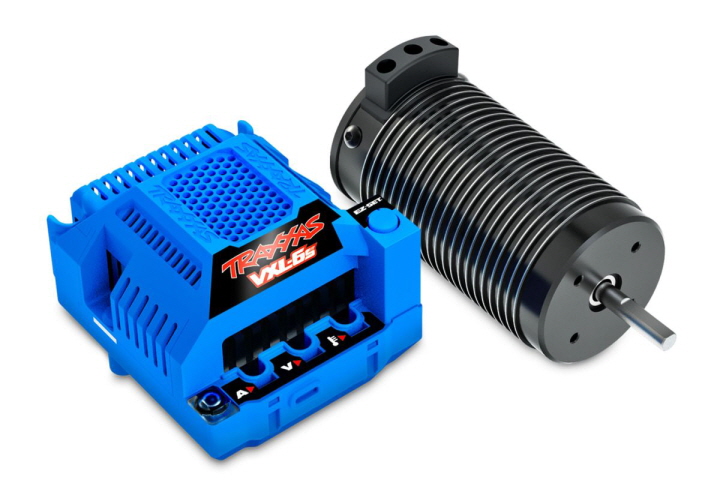

The advanced Velineon® VXL-6s™ ESC is custom-tuned to pour on the power you demand for over-the-top fun. An integrated fan cools the oversized heatsink to keep ESC temperatures down and extend run times. Bright LED status lights keep you informed with temperature and voltage warnings. Internal safety programming constantly monitors ESC performance to protect it from damage. The VXL-6s comes pre-programmed with real-time telemetry capability using the optional 6511 Wireless Module (sold separately) installed in a Traxxas TQi™ transmitter. Use the free Traxxas Link™ App to see speed, RPM, voltage and ESC temperature directly on your mobile device.

The massive Velineon 2200 Kv brushless motor delivers the perfect balance of brutal horsepower and long run times. Ultra-high temperature sintered Neodymium magnets, high-speed ball bearings, and a precision balanced rotor deliver smooth-running performance. Huge 6.5 mm gold-plated bullet connectors and 10-gauge wire flow maximum current from the ESC to the motor for brutal torque all the way to redline.

MOTOR SPECS

Name: 4-pole 2000 Kv

Type: Sensorless brushless

Weight: 14.32 oz (406 g)

Length: 2.97 inches (76 mm)

Diameter: 1.65 inches (42 mm)

Shaft Size: 5 mm

Connector Type: Traxxas 6.5 mm bullet connectors

ESC SPECS

Name: VXL-6s

Type: Brushless

Case Size: 2.28” (58 mm) x 2.83” (72 mm) x 1.81” (46 mm)

Weight: 7.30 oz (207 g)

Motor Connectors: 6.5 mm bullet connectors

Battery Connectors: Traxxas High-Current Connectors

적용차량

Maxx Slash

102076-4

Sledge

95096-4
