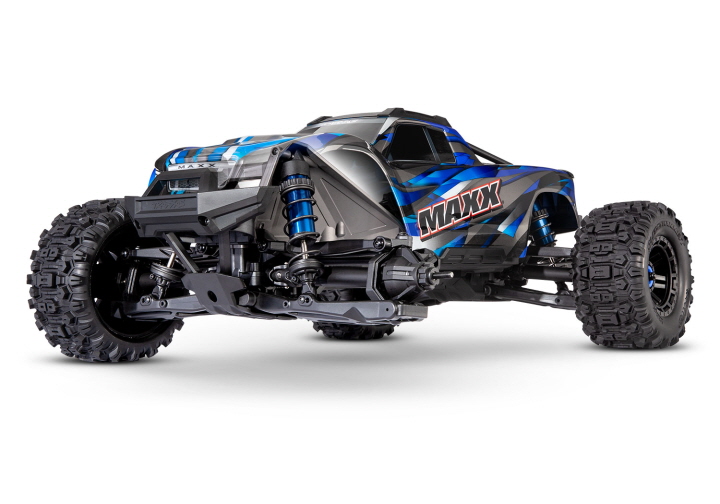

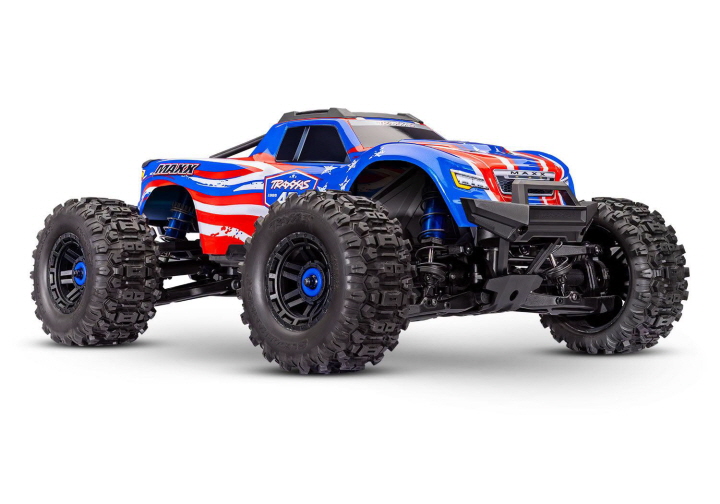

Name: Maxx

Type: Monster Truck

Speed: 60+ mph with 4s LiPo battery and optional gearing

Skill Level: 4

Scale: 1/10

Weight: 10.40 pounds (4.7 kg)

Length: 22.50 inches (572 mm)

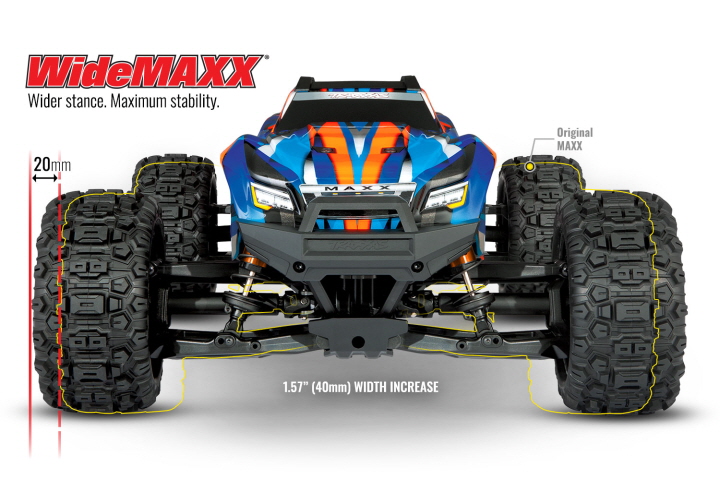

Width: 15.95 inches (405 mm)

Front Track: 15.95 inches (405 mm)

Rear Track: 15.95 inches (405 mm)

Height: 9.12 inches (232 mm)

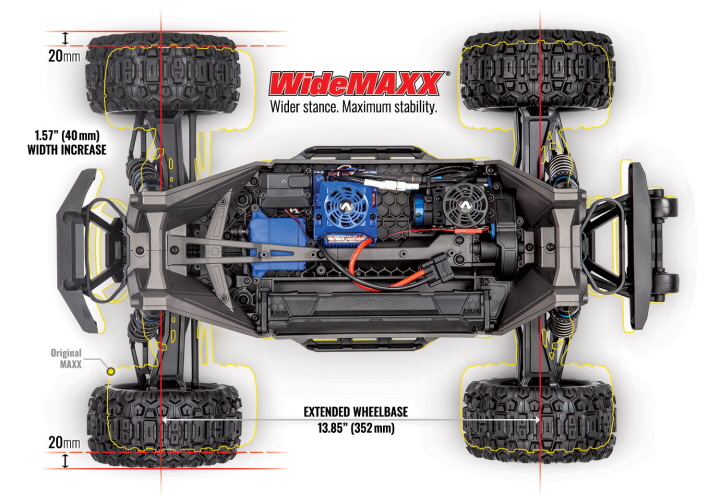

Wheelbase: 13.85 inches (352 mm)

Center Ground Clearance: 2.6 inches (67 mm)

Driveline: Shaft-driven 4WD

Transmission: Single speed

Differential Type: Sealed, hardened steel bevel, limited slip

Gear Ratio (Internal): 12.37:1

Gear Pitch: 1.0 metric pitch

Steering Servo: 2090 digital high-torque waterproof (285 oz-in)

Radio System: TQi™ 2.4 GHz transmitter with TSM® receiver

Battery Compartment Specs: 186 mm X 48 mm X 43 mm

MOTOR SPECS

Name: 540XL

Type: 2400 Kv sensorless brushless

Weight: 317 g (11.1 8 oz)

Length: 3.58 inches (91 mm)

Diameter: 1.41 inches (36 mm)

Shaft Size: 5 mm

Connector Type: 6.5 mm bullet connectors

ESC SPECS

Name: Velineon VXL-4s

Type: Brushless

Case Size: 72 mm L x 59 mm W x 49 mm H

Weight: 7.09 ounces (201 grams)

Motor Connectors: 6.5 mm bullet connectors

Battery Connectors: Traxxas High-Current Connectors
