MODEL SPECS

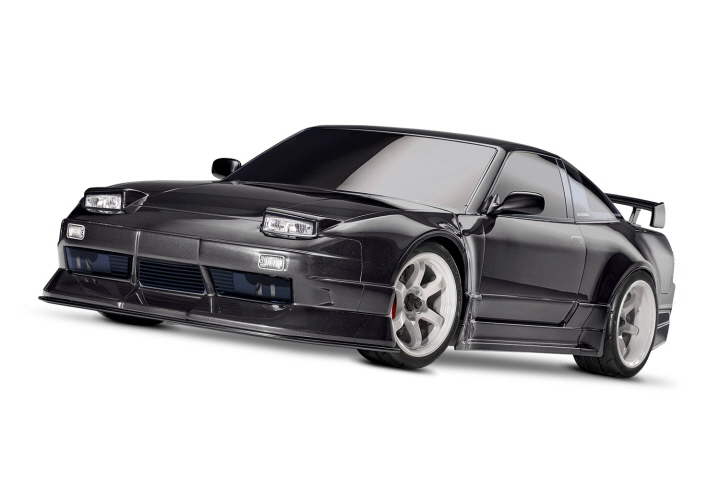

Name: 4-Tec 2.0 Nissan 240SX Brushless

Type: On-Road Car

Skill Level: 1

Scale: 1/10

Weight: 2.28 pounds (1.30 kg)

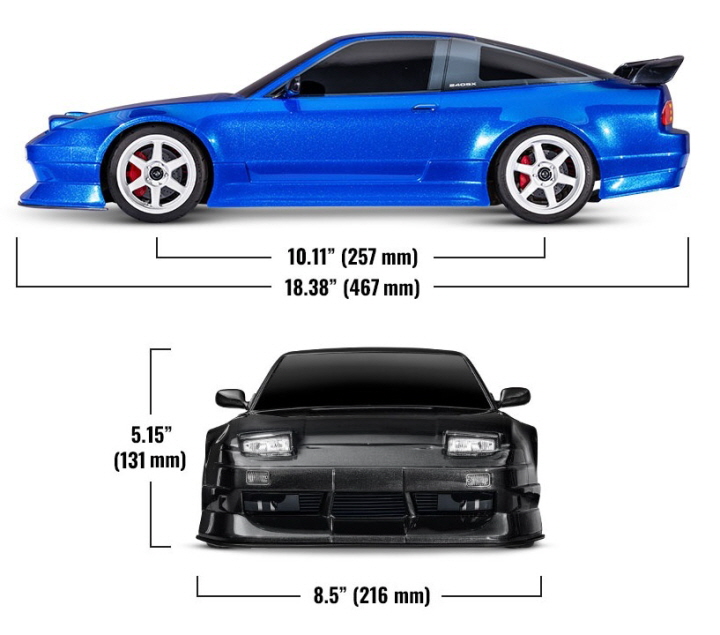

Length: 18.38 inches (467 mm)

Width: 8.50 inches (216 mm)

Front Track: 7.87 inches (200 mm)

Rear Track: 7.87 inches (200 mm)

Height: 5.15 inches (131 mm)

Wheelbase: 10.11 inches (257 mm)

Center Ground Clearance: 0.5 inches (12 mm)

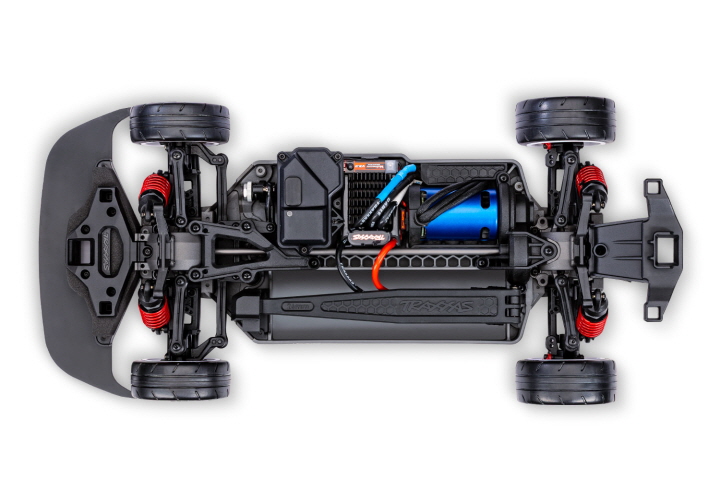

Driveline: Shaft-driven AWD

Differential Type: Sealed, hardened steel bevel, limited slip

Gear Pitch: 48 pitch

Steering Servo: 2057 waterproof metal gear

Radio System: TQi™ Sport 2.4 GHz 2-channel transmitter

Battery Compartment Specs: 174 mm X 48 mm X 23 mm or 26 mm

MOTOR SPECS

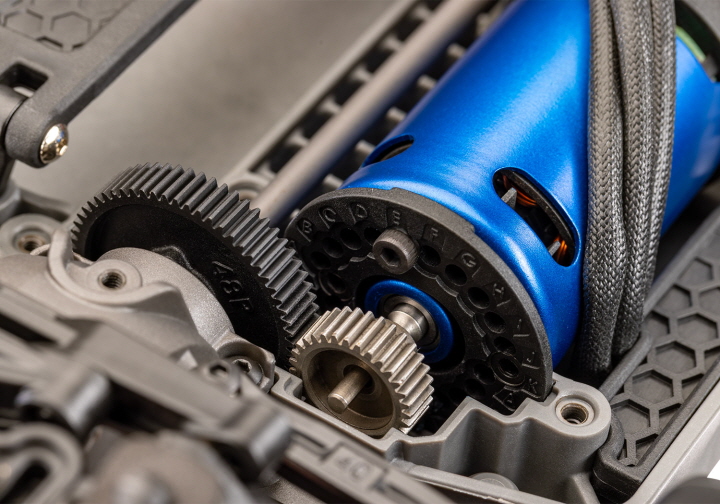

Name: Velineon V3300 (patent pending)

Motor Type: Sensorless brushless

Weight: 7.48 ounces (212 g)

Length: 3.15 inches (80 mm)

Diameter: 1.53 inches (39 mm)

Shaft Size: 3 mm

Connector Type: 3.5 mm Bullet

ESC SPECS

Name: VX3 Electronic Speed Control

ESC Type: Brushless

Voltage Range: 2-cell or 3-cell LiPo (NiMH not supported)

Case Size: 2.40″ (61 mm) x 2.09″ (53 mm) x 1.69″ (43 mm)

Weight: 4.20 ounces (119 g)

BEC Voltage: 6.0 volts

Motor Connectors: 3.5 mm bullet

Battery Connectors: Traxxas High-Current Connector
