MODEL SPECS

Name: T-Maxx® 3.3

Type: Monster Truck

Speed: 45+ mph

Skill Level: 4

Scale: 1/10

Weight: 10.01 pounds (4.54 kg)

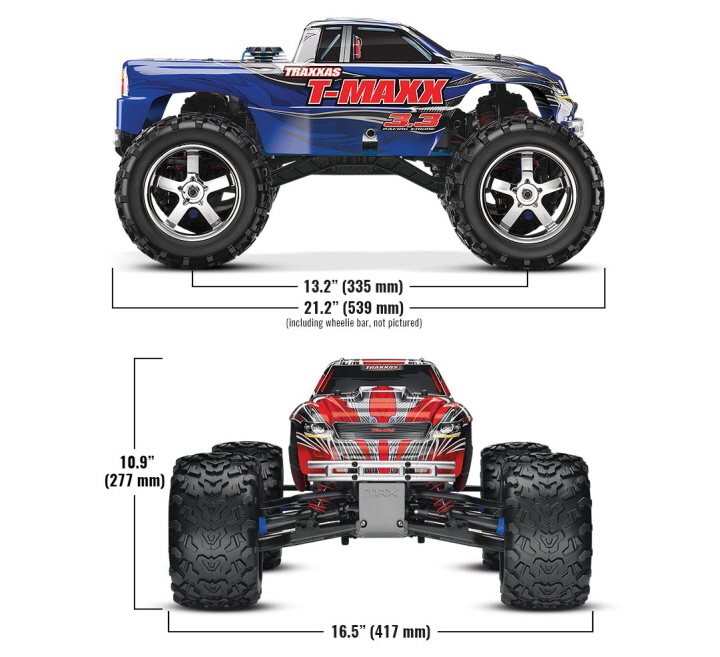

Length: 21.21 inches (539 mm)

Width: 16.5 inches (417 mm)

Front Track: 16.5 inches (417 mm)

Rear Track: 16.5 inches (417 mm)

Height: 10.9 inches (277 mm)

Wheelbase: 13.2 inches (335 mm)

Center Ground Clearance: 4.2 inches (106 mm)

Driveline: Shaft-driven 4WD

Transmission: Wide-ratio, two-speed, forward-only

Differential Type: Hardened steel bevel gear, sealed, limited slip

Gear Ratio (Internal): 24.8:1 (1st gear) 15.8:1 (2nd gear)

Gear Pitch: 32 pitch

Steering Servo: 2070 high-torque

Radio System: TQi™ 2.4 GHz 3-channel transmitter with TSM® receiver and 6511 Wireless Module

Size: 3.3 cc

Starter: Electric EZ-Start®

Carburetor: Two-needle slide carburetor

Air Filter: Dual-stage foam

Tank Size: 125 cc

MOTOR SPECS

Engine Name: TRX® 3.3 Racing

Fuel Type: Nitromethane

Displacement: 3.3 cc

Starter: Electric EZ-Start®

Carburetor: Two-needle slide carburetor

Air Filter: Dual-stage foam
