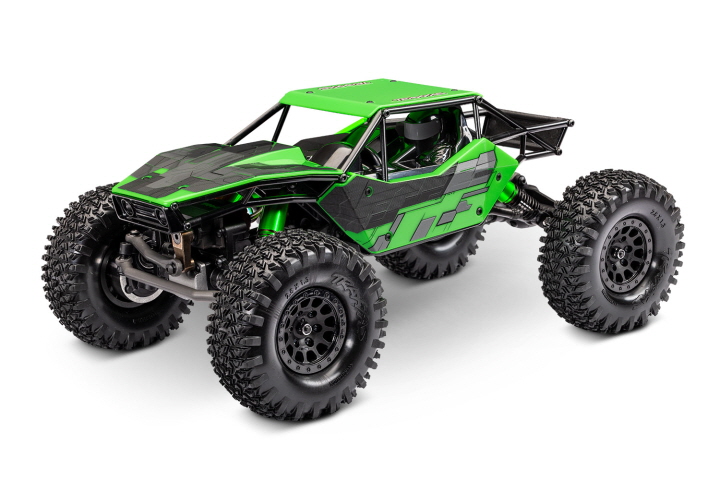

Name: TXC-4M Extreme Crawler

Type: Trail / Crawler

Skill Level: 1

Scale: 1/18

Weight: 1.03 pounds (467 g)

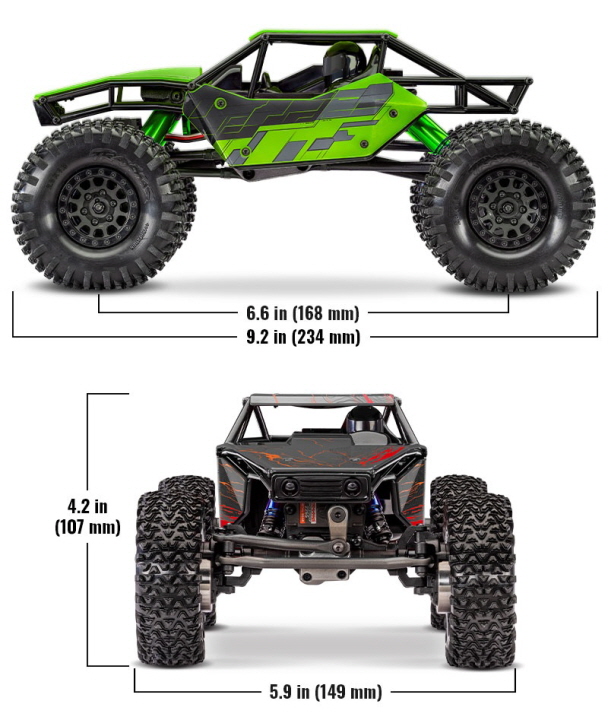

Length: 9.22 inches (234 mm)

Width: 5.86 inches (149 mm)

Track: 5.86 inches (149 mm)

Height: 4.2 inches (107 mm)

Wheelbase: 6.6 inches (168 mm)

Center Ground Clearance: 1.7 inches (43 mm)

Driveline: Shaft-driven 4WD

Transmission: Single speed direct drive

Differential Type: Locked spool

Gear Ratio (Internal): 74.1:1

Steering Servo: 2265

Battery Compartment Specs: 41 mm L, 22 mm W, 14 mm H

MOTOR SPECS

Type: 3s sensorless brushless

Kv rating: 3350

Weight: 0.63 ounces (18 g)

Length: 0.94 inches (24 mm)

Diameter: 0.63 inches (16 mm)

ESC SPECS

Type: 3s Brushless

Case Size: 1.33 inches ( 34 mm) x 0.98 inches (25 mm) x 0.55 inches (14 mm)

Weight: .92 ounces ( 26 g)

BEC: 6 volts
